Picture/Display
Diagonal screen size (metric): 138.7 cm
Diagonal screen size (inch): 54.6 inch
Aspect ratio: 16:9
Panel resolution: 3840 x 2160
Pixel pitch: 0.315 × 0.315 mm
Optimum resolution: 3840 x 2160 @ 60 Hz
Brightness: 500 cd/m²
Display colours: 1.07 Billion
Contrast ratio (typical): 5000:1
Dynamic contrast ratio: 500,000:1
Response time (typical): 8 ms
Viewing angle (horizontal): 178 degree
Viewing angle (vertical): 178 degree
Panel technology: VA
Haze: 25%
Connectivity
Audio output: 3.5 mm jack
Video input: Display Port1.2 (x 1) - DVI-I (x 1) - HDMI 2.0 (x 2) - USB 2.0 (x 2)
Audio input: 3.5 mm jack
Other connections: OPS
Video output: DisplayPort 1.2 (x 1) - HDMI 2.0 (x 1)
External control: IR (in/out) 3.5 mm jack - RJ45 - RS232C (in/out) 2.5 mm jack
Convenience
Placement: Landscape (24/7) - Portrait (24/7)
Screen-saving functions: Pixel Shift, Low Bright
Keyboard control: Hidden - Lockable
Signal loop through: DisplayPort - RS232 - HDMI - IR Loop through
Energy-saving functions: Smart Power
Network controllable: RS232 - RJ45
Sound
Built-in speakers: 2 x 10 W RMS
Power
Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical): 135 W
Consumption (Max): 278 W
Standby power consumption: 0.5 W
Energy Label Class: G
Supported Display Resolution
Computer formats
640 x 480, 60 Hz
800 x 600, 60 Hz
1024 x 768, 60 Hz
1280 x 720, 60 Hz
1280 x 1024, 60 Hz
1440 x 900, 60 Hz
1600 x 900, 60 Hz
1680 x 1050, 60 Hz
1920 x 1080, 60 Hz
3840 x 2160, 30, 60 Hz
Video formats
480i, 60 Hz
480p, 60 Hz
576p, 50 Hz
576i, 50 Hz
720p, 50,60 Hz
1080i, 50, 60 Hz
1080p, 50, 60 Hz
2160p, 24, 30, 60 Hz
Dimensions
Set Width: 1241.8 mm
Product weight: 16.6 kg
Set Height: 712.6 mm
Set Depth: 63.6 mm
Set Width (inch): 48.89 inch
Set Height (inch): 28.06 inch

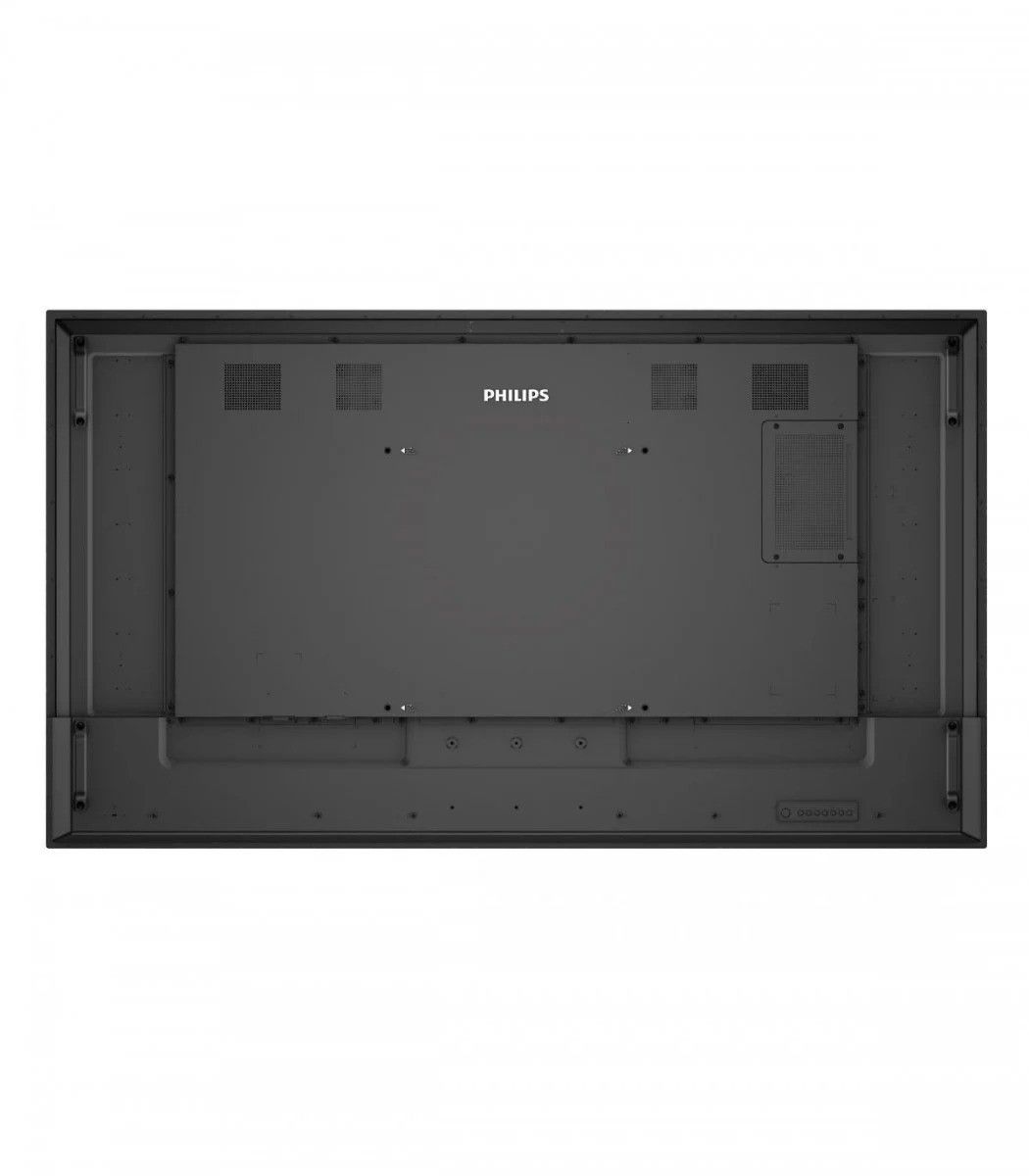

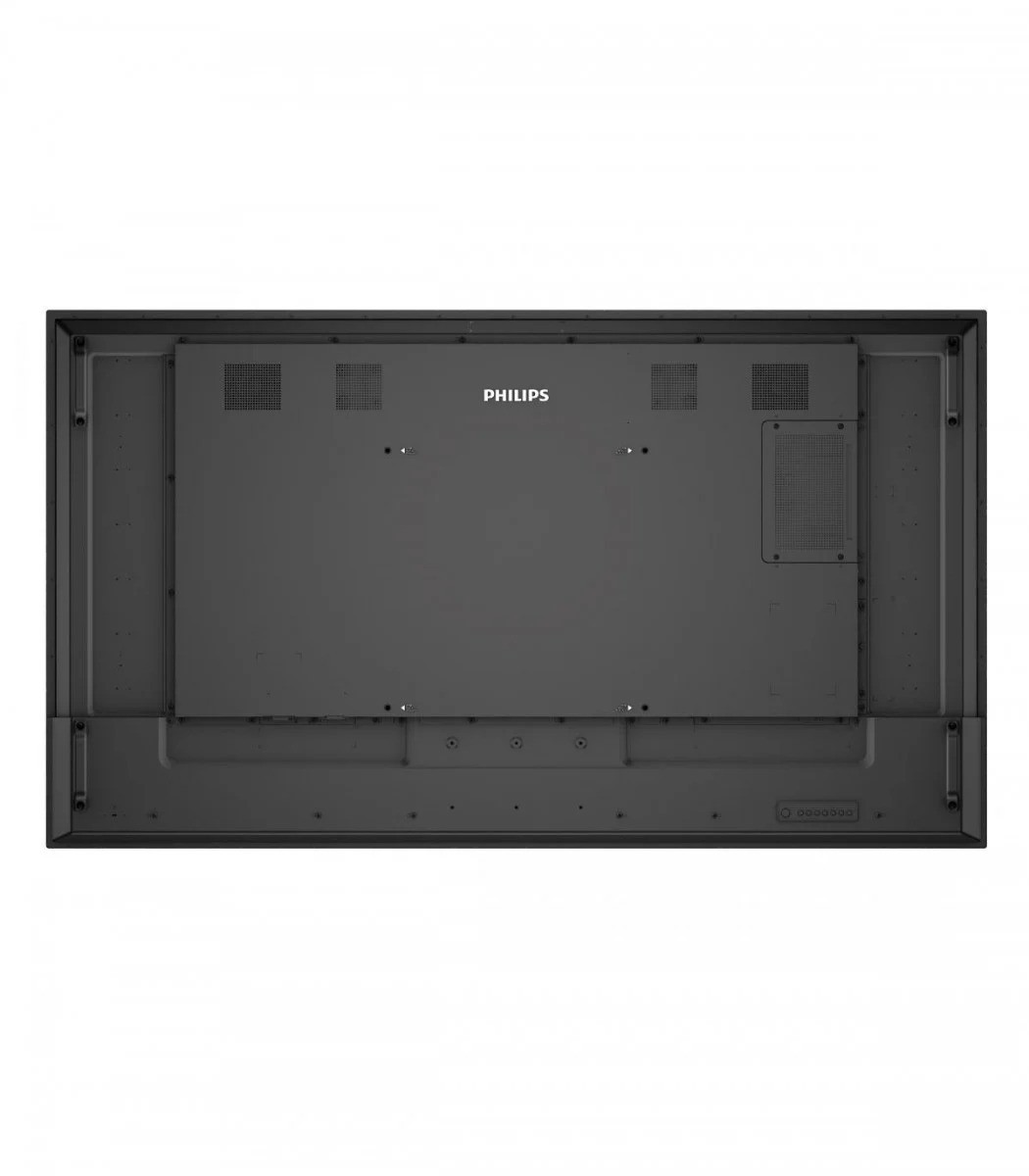

Wall Mount: 400 (H) x 400(V) mm, M6
Set Depth (inch): 2.50 inch
Bezel width: 13.9 mm (Even bezel)
Product weight (lb): 36.60 lb
